Chemical Process Equipment

Engineered FRP & Dual-Laminate Industrial Systems

Fibrotops Composite Pvt. Ltd. offers a comprehensive range of FRP Chemical Process Equipment engineered for industries handling corrosive chemicals, wastewater, aggressive gases, and high-temperature process fluids. Designed using advanced Fiber Reinforced Polymer (FRP) composites, our products deliver long-term corrosion resistance, structural stability, and superior performance in chemical plants, wastewater treatment systems, pollution control facilities, and process industries.

Our FRP solutions—including storage tanks, scrubbers, reaction vessels, pickling tanks, chemical dosing tanks, piping & ducting, and dual-laminate equipment—are manufactured as per BS 4994, EN 13121, ASTM D-3299, D-4097, and ASME RTP-1 international standards. Each product is engineered to ensure safe operation, long service life, and reduced maintenance compared to MS, MSRL, GI, and RCC alternatives.

FRP Storage Tanks

"Corrosion-Resistant Composite Tanks Engineered for Chemical, Water & Industrial Liquid Storage."

FIBROTOPS designs and manufactures GRP/FRP storage tanks engineered for industries requiring safe, long-lasting containment of aggressive acids, industrial solvents, effluents, and process fluids. Utilizing high-strength structural glass layers and chemical-specific resin systems, our tanks offer absolute structural integrity and leak-proof performance superior to concrete or rubber-lined metallic tanks.

Key Features:

• ✓
  Resin Selection: Vinyl Ester, Bisphenol, or Isophthalic resins formulated based on chemical pH.
• ✓
  High Capacities: Built in standard and custom capacities from 500 Liters up to 200 KL+.
• ✓
  Structural Configurations: Vertical, horizontal, cylindrical, flat/conical/sloped bottom options.

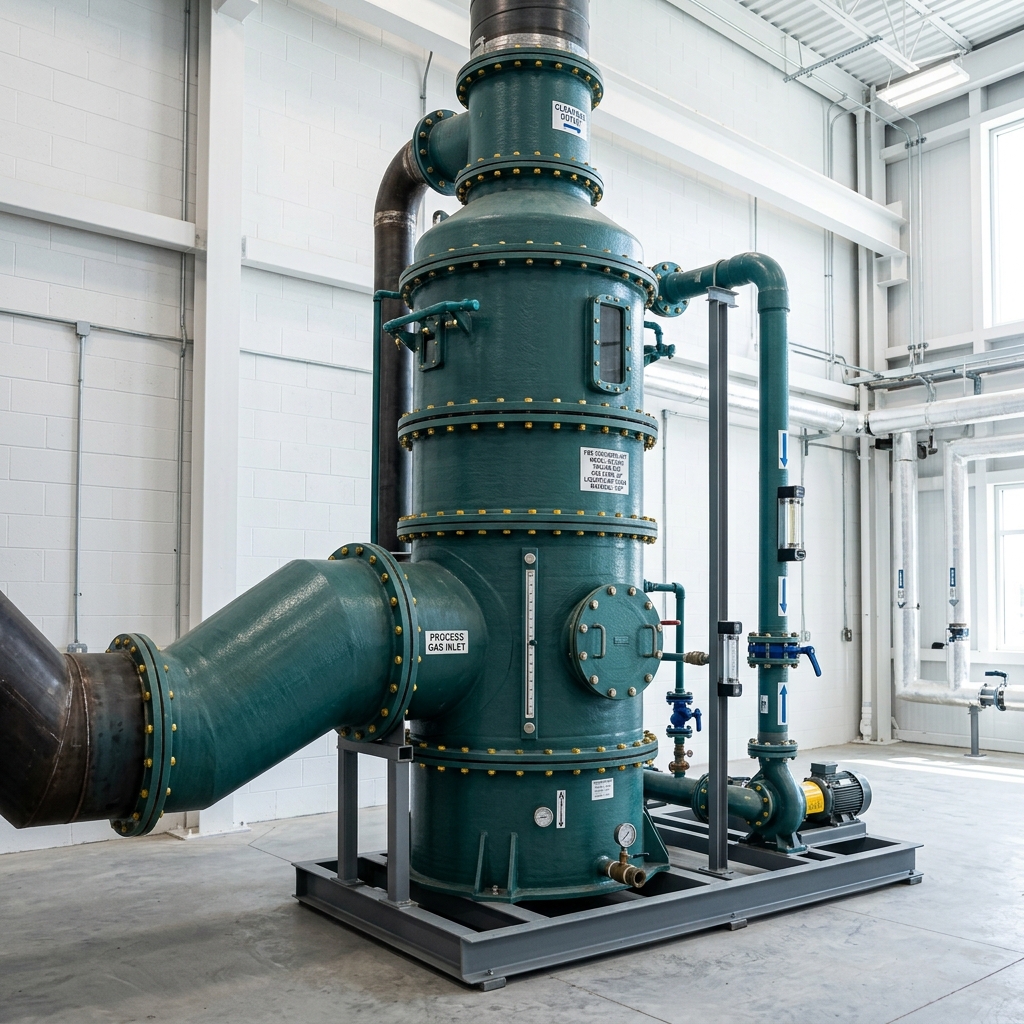

FRP Scrubbers

"High-Efficiency Air Pollution Control Systems for Corrosive Fume & Gas Treatment."

FIBROTOPS manufactures packed-bed, venturi, and crossflow wet scrubbers designed for the safe removal of acidic fumes, chemical vapors, halogens, and particulates from industrial exhaust lines. Fabricated using corrosion-proof Vinyl Ester composites, our scrubbers deliver long service life and high removal efficiency to meet environmental regulations.

Key Features:

• ✓
  High Removal Efficiency: Gas scrubbing efficiencies up to 95% to 99.9%.
• ✓
  Custom Sizing: Engineered airflow capacities up to 80,000+ m³/hr.
• ✓
  Complete Systems: Includes composite blowers, mist demisters, spray nozzles, and circulation lines.

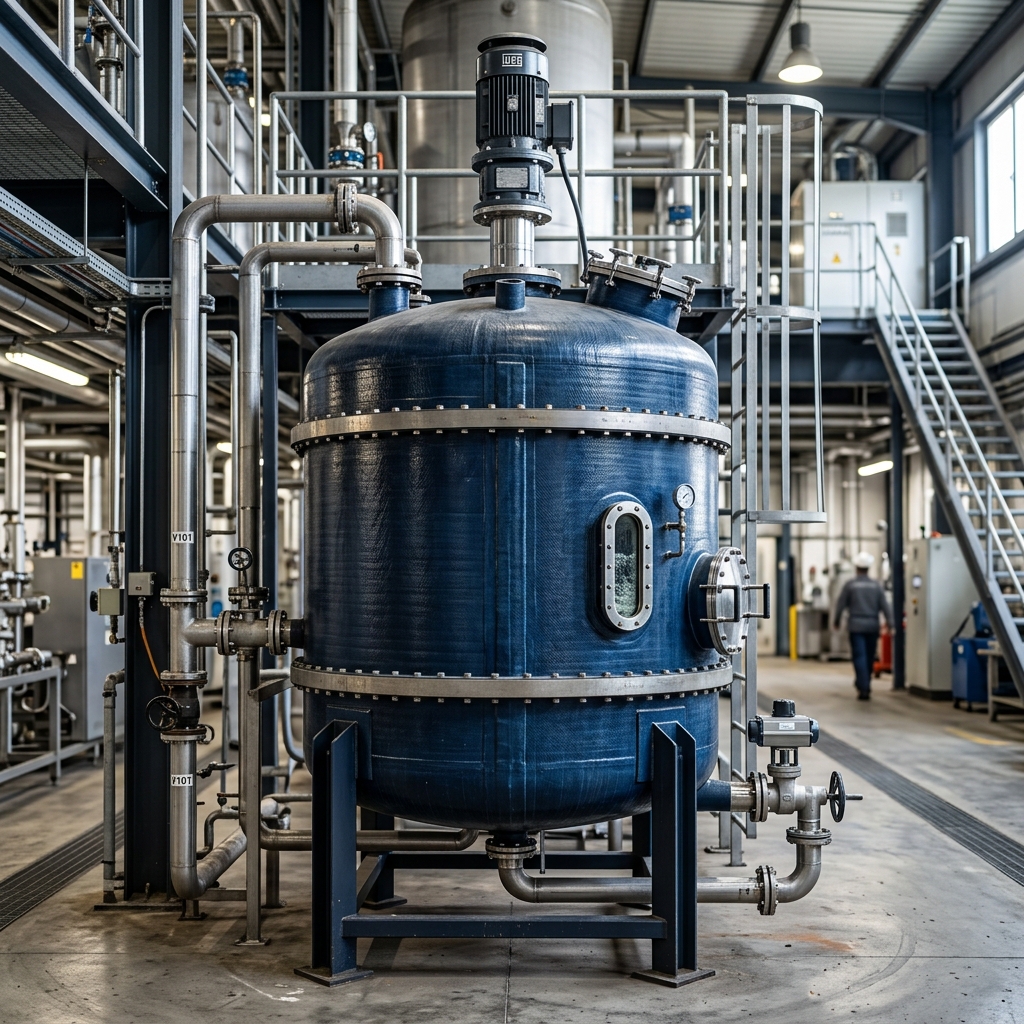

FRP Mixing Vessels

"Engineered Composite Vessels Designed for Chemical Reaction, Blending & Process Handling."

FIBROTOPS Reaction and Mixing Vessels are designed to handle corrosive and reactive chemicals under mechanical mixing stress. Engineered with heavy-duty structural stiffeners, internal baffles, and agitator mounting pads, these vessels provide a durable alternative to stainless steel or glass-lined steel vessels.

Key Features:

• ✓
  Agitator Mounting: MS or SS reinforcement plates fully encapsulated within GRP laminate overlays.
• ✓
  Internal Accoutrements: FRP vortex breakers, baffles, heating coil supports.
• ✓
  Bottom Profiles: Dome, flat, sloped, or conical bottom layouts for total drainage.

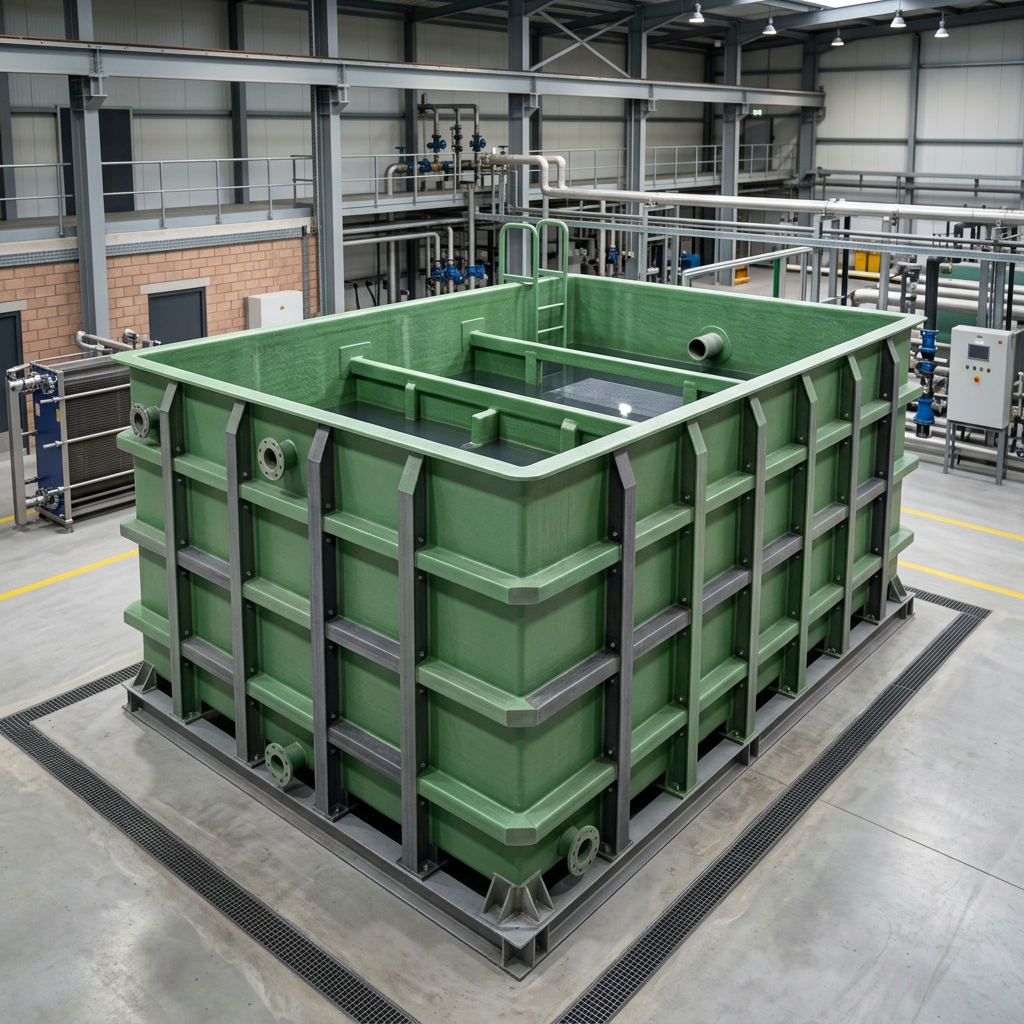

FRP Pickling Tanks

"Acid-Resistant Composite Tanks Engineered for Metal Pickling & Surface Cleaning."

FIBROTOPS manufactures heavy-duty rectangular Pickling Tanks designed specifically for acid pickling, rinsing, and pretreatment lines. Resistant to HCl, H₂SO₄, and HF acid mixtures, our tanks incorporate heavy-duty structural steel box sections fully wrapped inside leak-proof FRP to resist bending deflection.

Key Features:

• ✓
  Deflection Resistance: Steel structural box frames encapsulated inside GRP sheets.
• ✓
  Dual-Laminates: Optional PP-FRP, PVC-FRP, or PVDF-FRP linings for high temperatures.
• ✓
  Fume Extraction: Molded lip suction duct channels for vapor extraction.

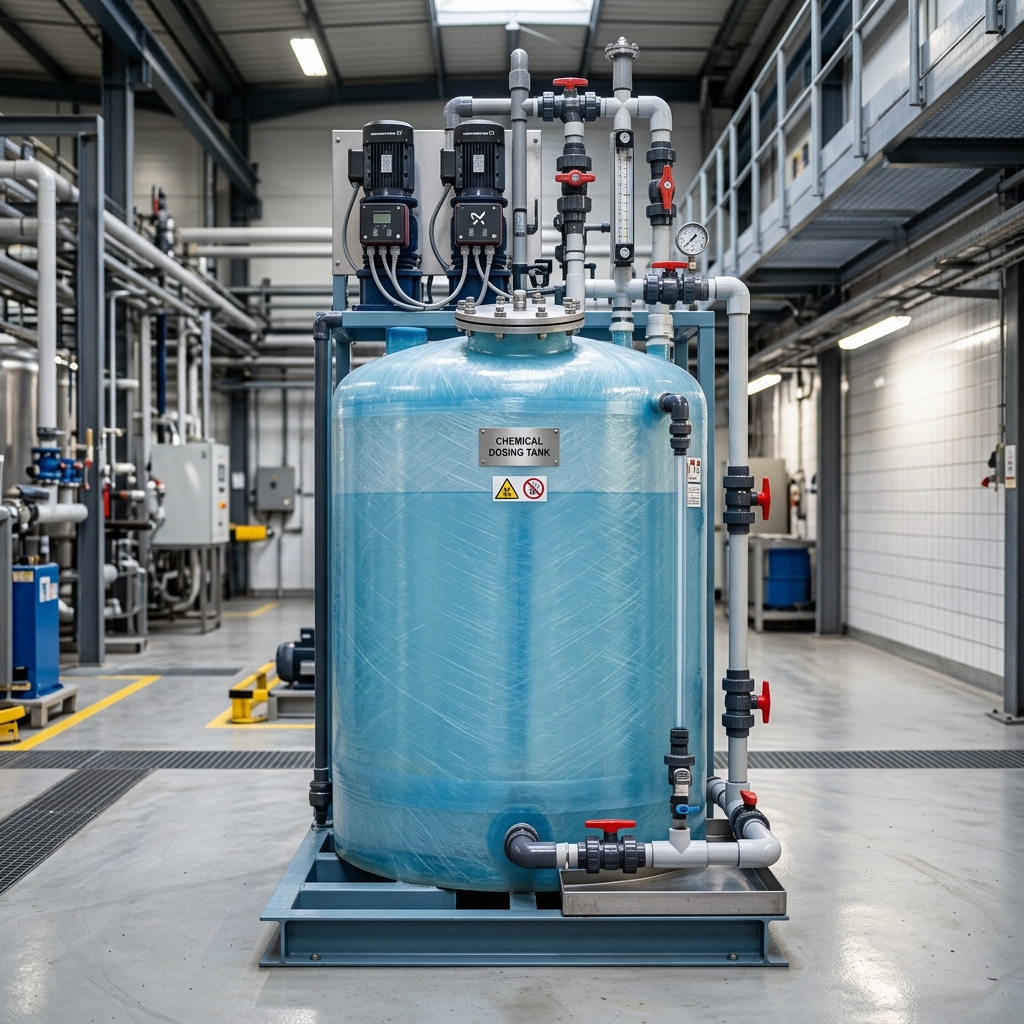

FRP Chemical Dosing Tanks

"Compact, Corrosion-Resistant FRP Tanks Designed for Precise Chemical Dosing."

FIBROTOPS manufactures compact FRP dosing tanks engineered for the storage and blending of dosing reagents like polymers, coagulants, acids, and chlorine. Features flat top surfaces designed to support chemical metering pumps, level transmitters, and agitators.

Key Features:

• ✓
  Flat Top Design: Specifically thick laminate to mount metering pumps and mixers.
• ✓
  Capacities: Compact range from 50 Liters up to 5,000 Liters.
• ✓
  Fittings: Level gauge slots, suction/return line ports, drain valves.

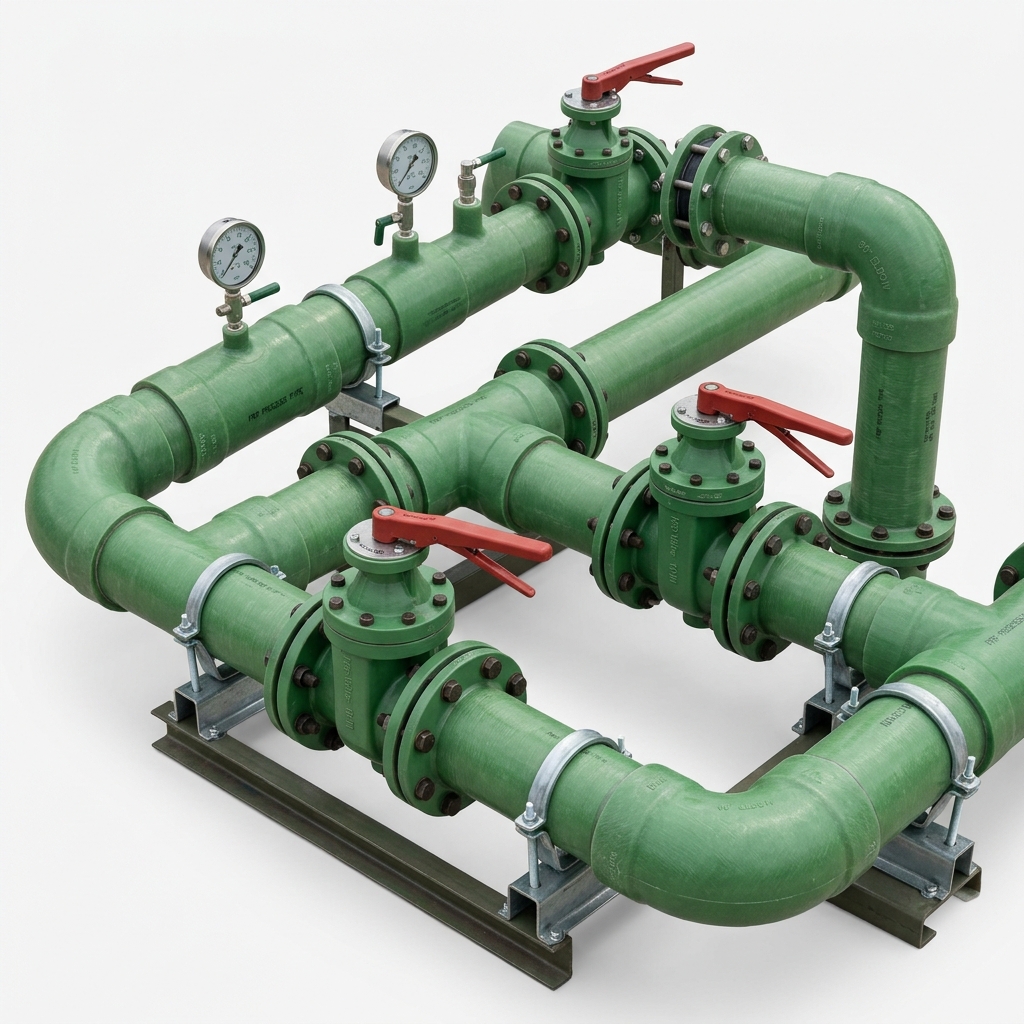

FRP Piping & Ducting

"Corrosion-Resistant Composite Piping & Ventilation Systems for Corrosive Gas Transfers."

FIBROTOPS GRP process pipelines and ducts are custom-designed based on pressure and vacuum requirements. Unaffected by sulfuric acid, bleach, sewage, and gas fumes, our pipelines offer a lightweight and long-lasting alternative to rubber-lined carbon steel pipelines.

Key Features:

• ✓
  Sizing Matrix: Pipeline diameters from 25 mm up to 1200 mm+.
• ✓
  Joint Formats: Laminated butt-and-strap joint, flanged connections, bell-and-spigot.
• ✓
  Pressure Rating: Certified for pressure lines from 1 kg/cm² up to 10 kg/cm².

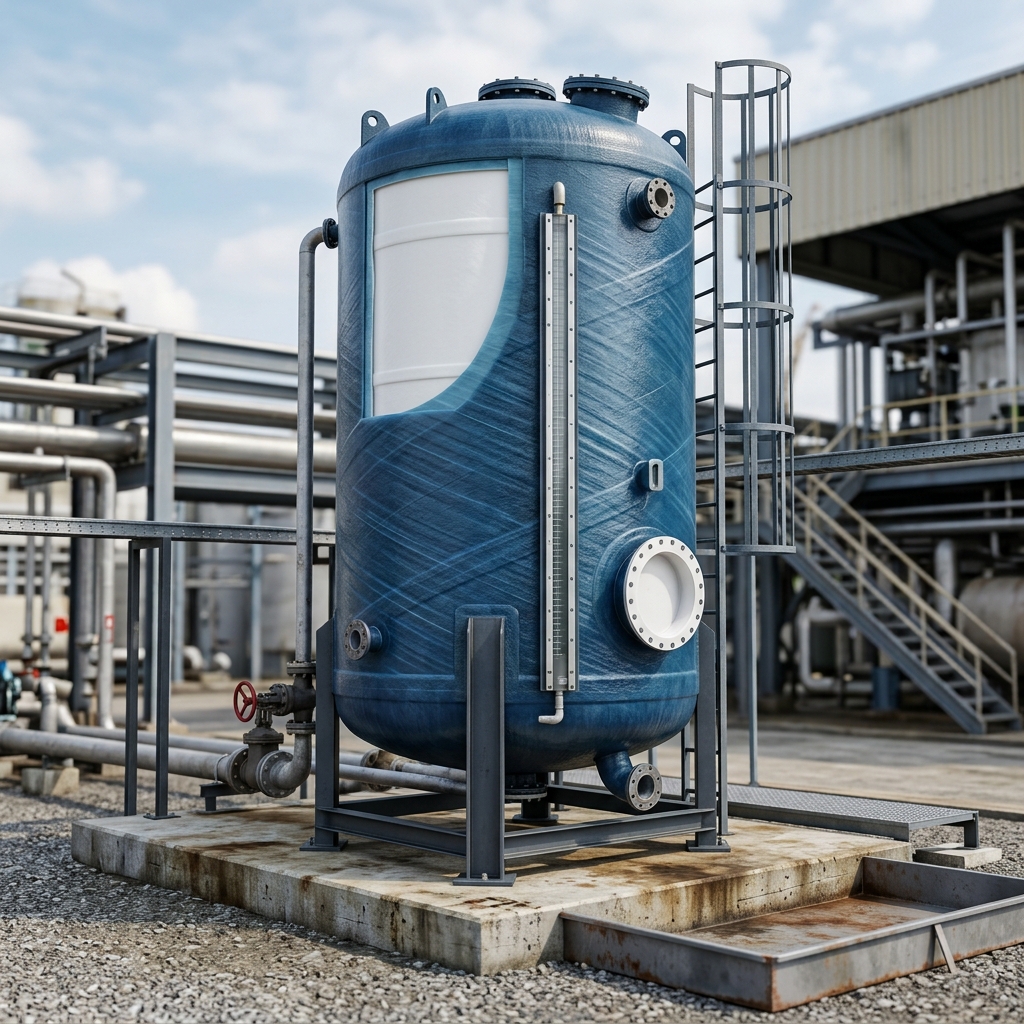

FRP Dual-Laminate Tanks

"High-Performance Composite Tanks with Thermoplastic Liners for Extreme Acids."

FIBROTOPS specializes in engineering Dual-Laminate Tanks, designed to contain aggressive chemical compounds that cannot be safely held by standard FRP or HDPE vessels (such as 33% HCl, 50% NaOH, or chlor-alkali brine). Dual laminates combine the chemical inertness of a thermoplastic inner liner with the structural strength of a glass-fiber GRP backing.

Key Features:

• ✓
  Inner Liners: Polypropylene (PP, 80-90°C), PVC/CPVC (60-90°C), PVDF (110-140°C), ECTFE/PTFE.
• ✓
  Outer GRP: Thick filament-wound GRP layer to handle full hydrostatic and mechanical loads.
• ✓
  High Temperature: Resists chemical processes up to 140°C based on liner choice.
